IAM Roles With Policies

Easily define IAM roles and policies with minimal configuration.

Features

• Simplifies the creation of IAM roles and policies on AWS with minimal configuration
• Uses the high-level IamRoles (IamRole) composite component for easy IAM definition
• Supports defining assume_role_service to auto-generate the assume role policy document
• Load naming match policy from config/iam-role-policies folder
• Supports attaching named policies

Source Code

my-roles.tsx

import { AwsStack } from '@dinghy/tf-aws'
import { IamRoles } from '@dinghy/tf-aws/iam'

export default () => (
  <AwsStack>
    <IamRoles />
  </AwsStack>
)

dinghy.config.yml

# s3Backend: # if you want to use a S3 bucket as backend
#   bucket: my-unique-s3-backend-bucket
# awsProvider: # if you want to use a specific AWS region
#   region: eu-west-1
roles:
  my-first-role:
  my-second-role:
    assume_role_service: lambda.amazonaws.com # default is ec2.amazonaws.com

Policies

Policies are resolved from the config/iam-role-policies folder. For each IAM role, policies are loaded in this priority order, based on the role's name:

1. my-first-role
   1. first.yml
   2. my.yml
   3. default.yml
2. my-second-role
   1. my-second-role.yml
   2. my.yml
   3. default.yml

default.tsx

# https://github.com/dinghydev/dinghy/blob/main/core/tf-aws/src/composites/iam/types.ts#RolePolicySchema
id-override-demo-policy:
  - id: override-by-id
    permission: readonly
    buckets:
      - dinghy-demo-site-overridable
eu-west-2-activated-services-all-access:
  - resources:
      - arn:aws:ec2:eu-west-2:*:*
      - arn:aws:ecs:eu-west-2:*:*

first.tsx

# https://github.com/dinghydev/dinghy/blob/main/core/tf-aws/src/composites/iam/types.ts#RolePolicySchema
managed-policies:
  - name: AmazonEC2ContainerRegistryPullOnly
first-role-only-buckets:
  - permission: admin
    buckets:
      - dinghy-demo-site-for-first-role

my-second-role.yml

# https://github.com/dinghydev/dinghy/blob/main/core/tf-aws/src/composites/iam/types.ts#RolePolicySchema
second-role-only-buckets:
  - permission: admin
    buckets:
      - dinghy-demo-site-for-second-role
id-override-demo-policy:
  - id: override-by-id
    permission: admin
    buckets:
      - dinghy-demo-site-overridable

my.tsx

# https://github.com/dinghydev/dinghy/blob/main/core/tf-aws/src/composites/iam/types.ts#RolePolicySchema
buckets-for-both-roles:
  - permission: readonly
    buckets:
      - dinghy-demo-site-for-both-roles

Outputs

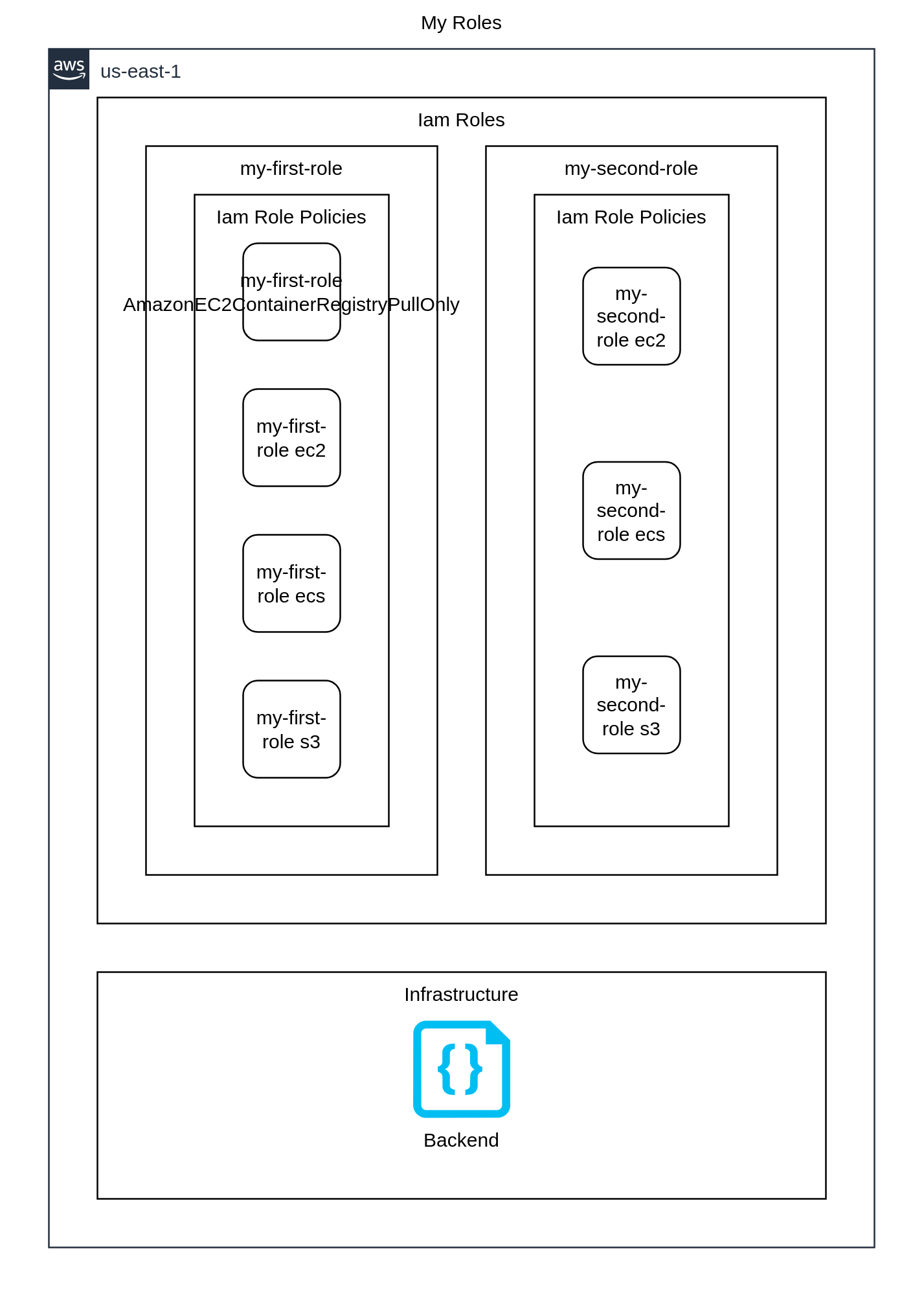

Overview

Terraform

stack.tf.json

{
  "provider": {
    "aws": [
      {
        "region": "us-east-1",
        "default_tags": {
          "tags": {
            "iac:stack-title": "My Roles",
            "iac:stack-name": "my-roles"
          }
        }
      }
    ]
  },
  "terraform": {
    "required_providers": {
      "aws": {
        "source": "aws",
        "version": "6.28.0"
      }
    },
    "backend": {
      "local": {
        "path": "stack.tfstate.json"
      }
    }
  },
  "resource": {
    "aws_iam_role": {
      "awsiamrole_myfirstrole": {
        "assume_role_policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"ec2.amazonaws.com\"},\"Action\":\"sts:AssumeRole\"}]}",
        "name": "my-first-role",
        "tags": {
          "Name": "my-first-role",
          "iac:id": "awsiamrole_myfirstrole"
        }
      },
      "awsiamrole_mysecondrole": {
        "assume_role_policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"lambda.amazonaws.com\"},\"Action\":\"sts:AssumeRole\"}]}",
        "name": "my-second-role",
        "tags": {
          "Name": "my-second-role",
          "iac:id": "awsiamrole_mysecondrole"
        }
      }
    },
    "aws_iam_role_policy_attachment": {
      "awsiamrolepolicyattachment_myfirstroleamazonec2containerregistrypullonly": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myfirstrole"
        ],
        "policy_arn": "arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryPullOnly",
        "role": "my-first-role"
      }
    },
    "aws_iam_role_policy": {
      "awsiamrolepolicy_myfirstroleec2": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myfirstrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"ec2:*\"],\"Resource\":[\"arn:aws:ec2:eu-west-2:*:*\"]}]}",
        "role": "my-first-role",
        "name": "ec2"
      },
      "awsiamrolepolicy_myfirstroleecs": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myfirstrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"ecs:*\"],\"Resource\":[\"arn:aws:ecs:eu-west-2:*:*\"]}]}",
        "role": "my-first-role",
        "name": "ecs"
      },
      "awsiamrolepolicy_myfirstroles3": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myfirstrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"s3:Get*\"],\"Resource\":[\"arn:aws:s3:::dinghy-demo-site-for-both-roles/*\",\"arn:aws:s3:::dinghy-demo-site-overridable/*\"]},{\"Effect\":\"Allow\",\"Action\":[\"s3:*\"],\"Resource\":[\"arn:aws:s3:::dinghy-demo-site-for-both-roles\",\"arn:aws:s3:::dinghy-demo-site-for-first-role\",\"arn:aws:s3:::dinghy-demo-site-for-first-role/*\",\"arn:aws:s3:::dinghy-demo-site-overridable\"]}]}",
        "role": "my-first-role",
        "name": "s3"
      },
      "awsiamrolepolicy_mysecondroleec2": {
        "depends_on": [
          "aws_iam_role.awsiamrole_mysecondrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"ec2:*\"],\"Resource\":[\"arn:aws:ec2:eu-west-2:*:*\"]}]}",
        "role": "my-second-role",
        "name": "ec2"
      },
      "awsiamrolepolicy_mysecondroleecs": {
        "depends_on": [
          "aws_iam_role.awsiamrole_mysecondrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"ecs:*\"],\"Resource\":[\"arn:aws:ecs:eu-west-2:*:*\"]}]}",
        "role": "my-second-role",
        "name": "ecs"
      },
      "awsiamrolepolicy_mysecondroles3": {
        "depends_on": [
          "aws_iam_role.awsiamrole_mysecondrole"
        ],
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Action\":[\"s3:*\"],\"Resource\":[\"arn:aws:s3:::dinghy-demo-site-for-both-roles\",\"arn:aws:s3:::dinghy-demo-site-for-second-role\",\"arn:aws:s3:::dinghy-demo-site-for-second-role/*\",\"arn:aws:s3:::dinghy-demo-site-overridable\",\"arn:aws:s3:::dinghy-demo-site-overridable\",\"arn:aws:s3:::dinghy-demo-site-overridable/*\",\"arn:aws:s3:::dinghy-demo-site-overridable/*\"]},{\"Effect\":\"Allow\",\"Action\":[\"s3:Get*\"],\"Resource\":[\"arn:aws:s3:::dinghy-demo-site-for-both-roles/*\"]}]}",
        "role": "my-second-role",
        "name": "s3"
      }
    }
  }
}

Resource types

List of resource types used by this stack, in approximate order of creation:

1. aws_iam_role
2. aws_iam_role_policy_attachment
3. aws_iam_role_policy

Steps to try

Install dinghy-cli

If you haven't already:

curl -fsSL https://get.dinghy.dev/install.sh | sh

Sample Screenshot

Prepare source code

Create my-roles.tsx and dinghy.config.yml files with content from above.

curl -fsSL --create-dirs -o iam-roles/my-roles.tsx https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/my-roles.tsx
curl -fsSL --create-dirs -o iam-roles/dinghy.config.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/dinghy.config.yml
curl -fsSL --create-dirs -o iam-roles/config/iam-role-policies/default.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/config/iam-role-policies/default.yml
curl -fsSL --create-dirs -o iam-roles/config/iam-role-policies/first.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/config/iam-role-policies/first.yml
curl -fsSL --create-dirs -o iam-roles/config/iam-role-policies/my-second-role.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/config/iam-role-policies/my-second-role.yml
curl -fsSL --create-dirs -o iam-roles/config/iam-role-policies/my.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/iam-roles/config/iam-role-policies/my.yml
cd iam-roles

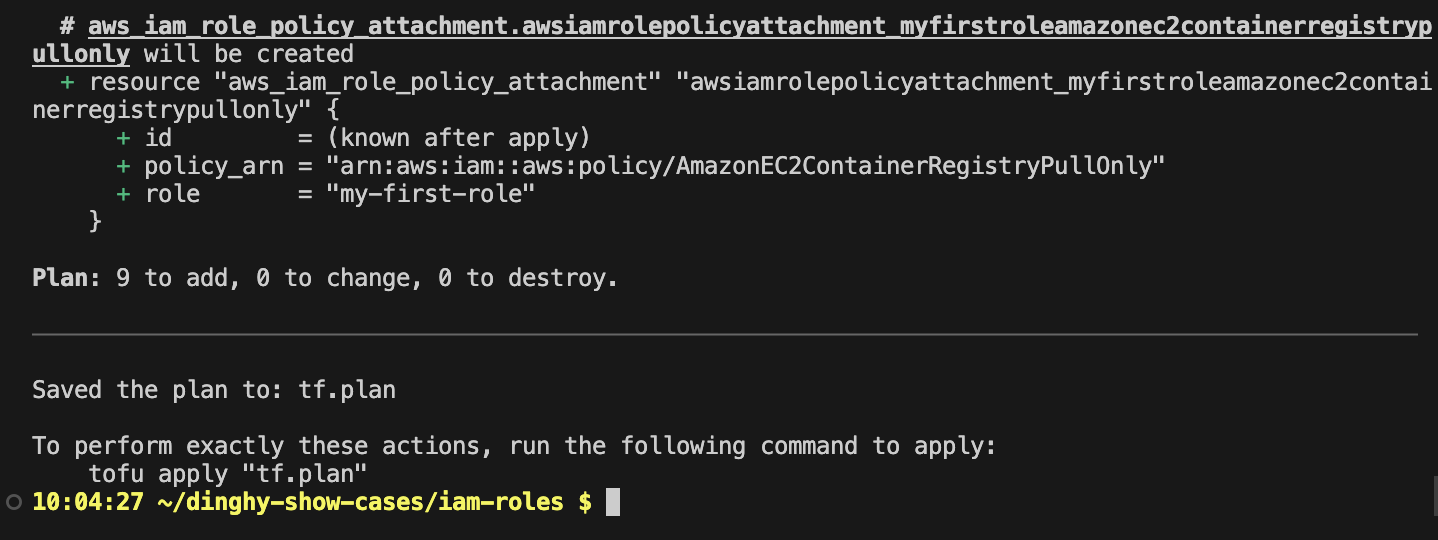

Preview the actions

Run dinghy tf diff to preview the Terraform actions that will be performed.

info

Make sure your AWS credentials are configured before interacting with AWS services.

dinghy tf diff

Sample Screenshot

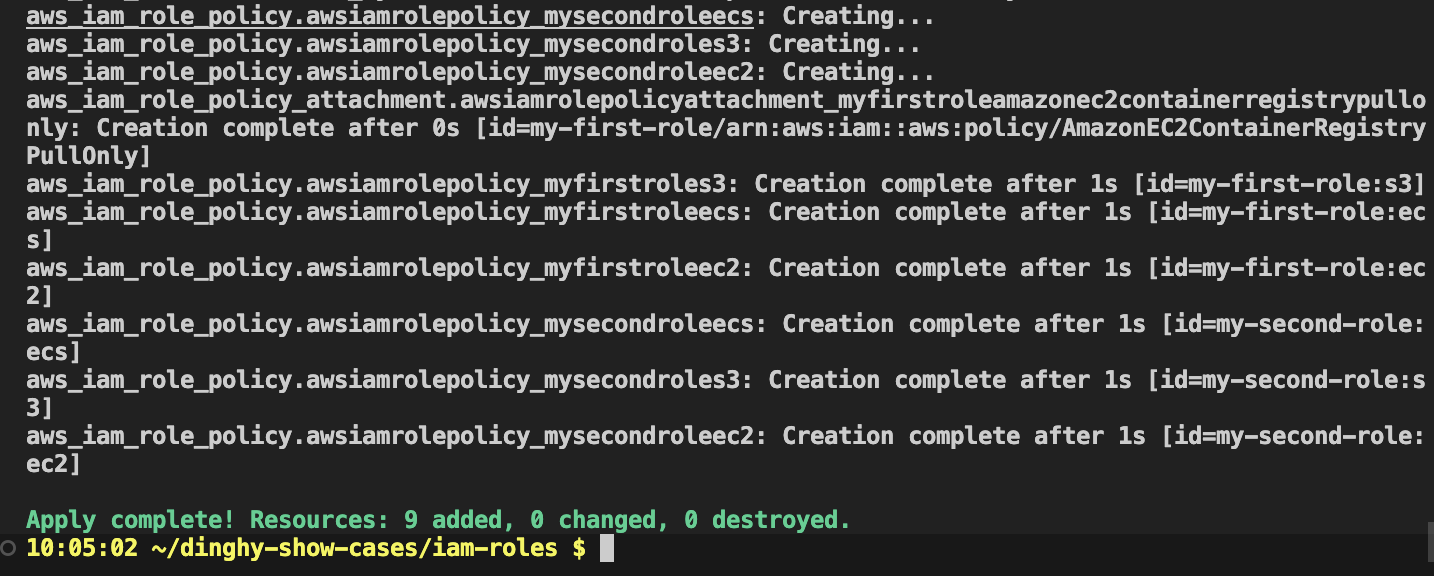

Apply the actions

Run dinghy tf deploy to apply the changes and provision your resources.

dinghy tf deploy

Sample Screenshot

Created Roles

info

The inline policy details are clearly organized by service.

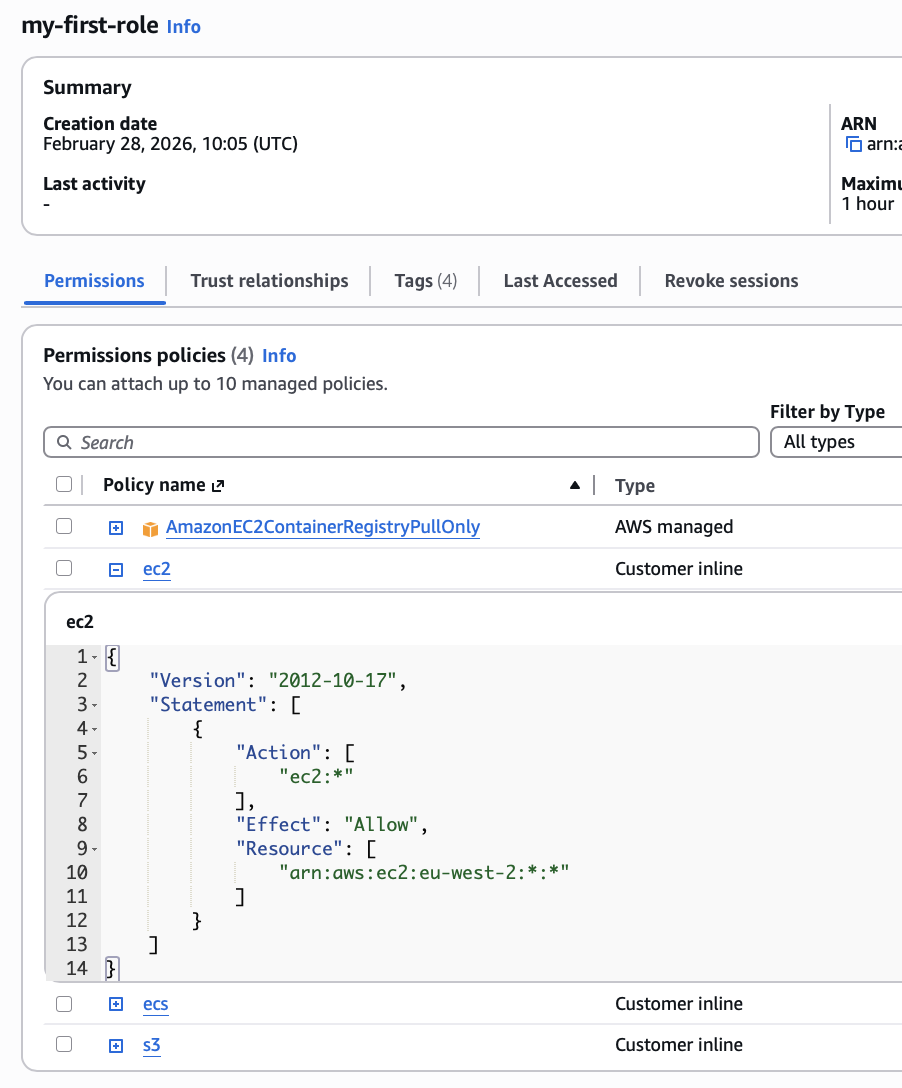

my-first-role

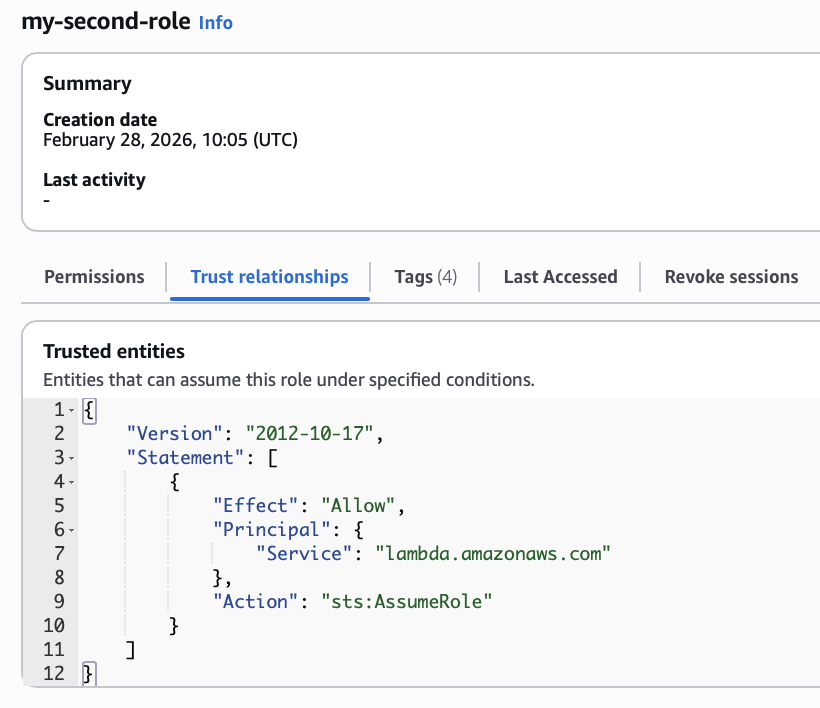

my-second-role

Destroy resources

After experimenting, run dinghy tf destroy to remove all resources created in the previous steps.
