EC2 Servers

With 10 lines of code to create an EC2 server.

Features

• Simplifies the creation of EC2 servers on AWS with minimal configuration
• Uses the high-level Ec2Servers (schema) composite component for easy infrastructure definition
• Supports customization of instance type (e.g., ARM or AMD architectures)
• Lets you choose Linux flavor (Amazon Linux 2023 or Ubuntu)
• Handles networking setup automatically: VPC, subnet, internet gateway, routing
• Automatically creates a public web traffic security group for your server when a public IP is enabled
• Automatically manages IAM roles and permissions for your EC2 instances
• Managing your servers securely with AWS Session Manager without SSH
• Generates standard Terraform code as an output alongside visual diagrams

Source Code

my-server.tsx

import { AwsStack } from '@dinghy/tf-aws'
import { Ec2Servers } from '@dinghy/tf-aws/ec2'

export default () => (
  <AwsStack>
    <Ec2Servers />
  </AwsStack>
)

dinghy.config.yml

# s3Backend: # if you want to use a S3 bucket as backend
#   bucket: my-unique-s3-backend-bucket
# awsProvider: # if you want to use a specific AWS region
#   region: eu-west-1
# servers:
#   my-server: # server name default to tsx file name without extension
#     # schema reference: https://registry.terraform.io/providers/hashicorp/aws/latest/docs/resources/instance
#     instance_type: t4g.nano # change to arm64 architecture instance type. Default is t3.nano which is amd64
#     linuxFlavor: ubuntu # default is al2023 which is amazon linux 2023
#     root_block_device:
#       volume_size: 100 # default is 8GB
#   my-server-2: # another server will be created with a different name

Outputs

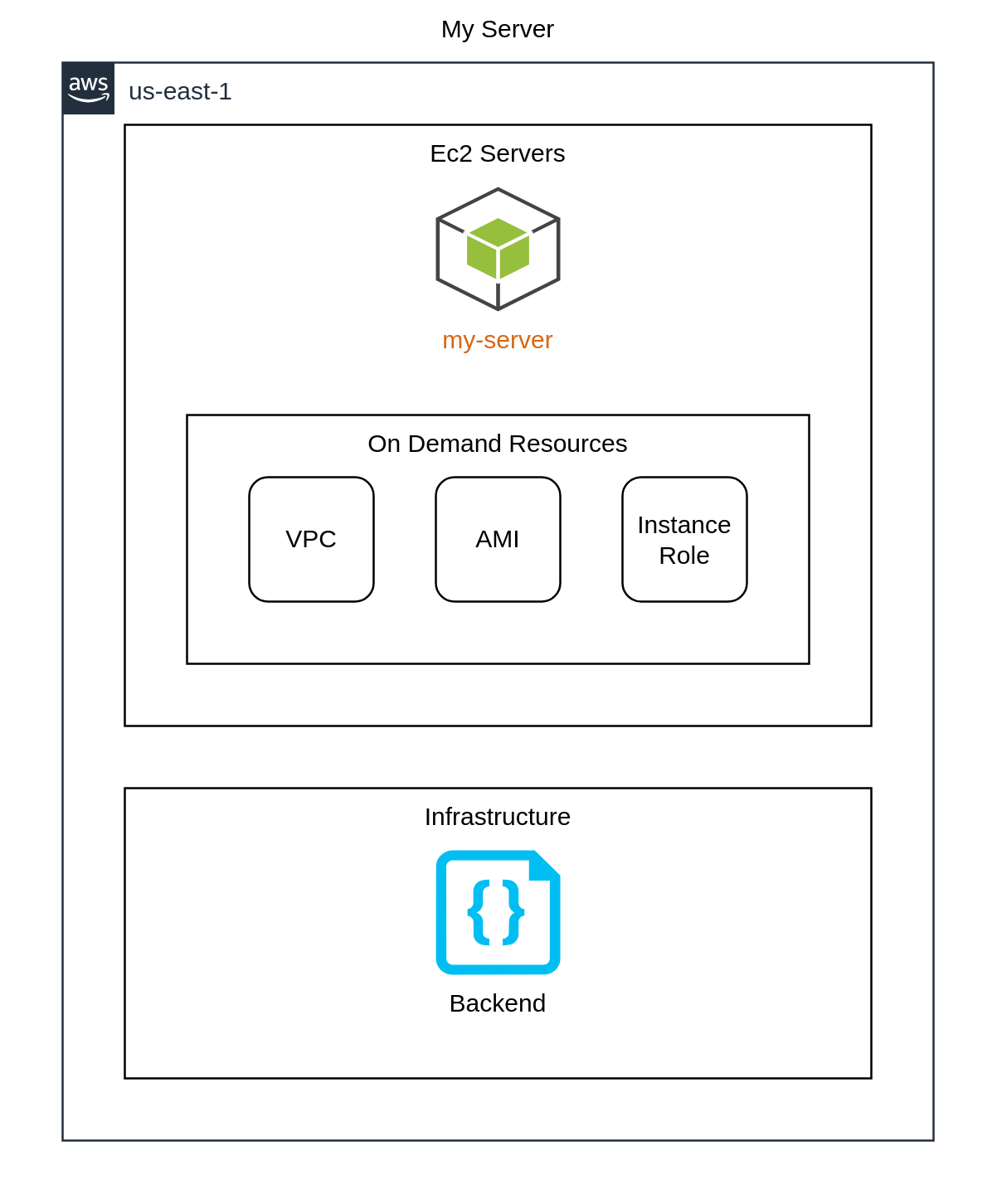

Overview

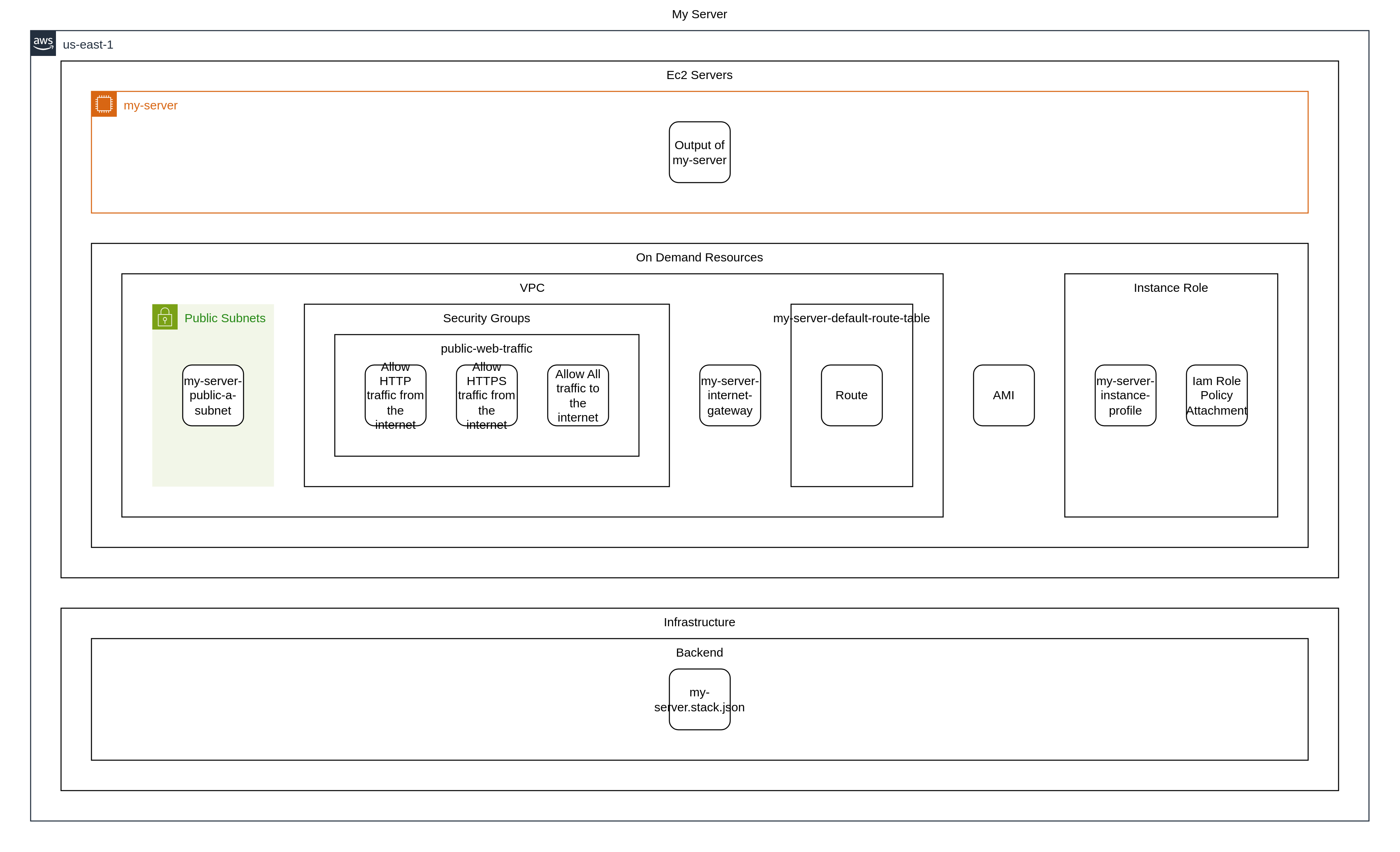

All View

All elements without filter

Terraform

stack.tf.json

{
  "provider": {
    "aws": [
      {
        "region": "us-east-1",
        "default_tags": {
          "tags": {
            "iac:stack-title": "My Server",
            "iac:stack-name": "my-server"
          }
        }
      }
    ]
  },
  "terraform": {
    "required_providers": {
      "aws": {
        "source": "aws",
        "version": "6.28.0"
      },
      "local": {
        "source": "local",
        "version": "2.6.1"
      }
    },
    "backend": {
      "local": {
        "path": "stack.tfstate.json"
      }
    }
  },
  "resource": {
    "aws_instance": {
      "awsinstance_myserver": {
        "lifecycle": {
          "ignore_changes": [
            "ami"
          ]
        },
        "ami": "${data.aws_ami.awsami_ami.id}",
        "associate_public_ip_address": true,
        "iam_instance_profile": "${aws_iam_instance_profile.awsiaminstanceprofile_myserverinstanceprofile.name}",
        "instance_type": "t3.nano",
        "subnet_id": "${aws_subnet.awssubnet_myserverpublicasubnet.id}",
        "vpc_security_group_ids": [
          "${aws_security_group.awssecuritygroup_publicwebtraffic.id}"
        ],
        "depends_on": [
          "aws_iam_instance_profile.awsiaminstanceprofile_myserverinstanceprofile",
          "aws_subnet.awssubnet_myserverpublicasubnet",
          "aws_security_group.awssecuritygroup_publicwebtraffic"
        ],
        "tags": {
          "Name": "my-server",
          "iac:id": "awsinstance_myserver"
        }
      }
    },
    "aws_vpc": {
      "awsvpc_myservervpc": {
        "cidr_block": "10.10.0.0/16",
        "tags": {
          "Name": "my-server-vpc",
          "iac:id": "awsvpc_myservervpc"
        }
      }
    },
    "aws_subnet": {
      "awssubnet_myserverpublicasubnet": {
        "vpc_id": "${aws_vpc.awsvpc_myservervpc.id}",
        "availability_zone": "us-east-1a",
        "cidr_block": "10.10.200.0/24",
        "depends_on": [
          "aws_vpc.awsvpc_myservervpc"
        ],
        "tags": {
          "Name": "my-server-public-a-subnet",
          "iac:id": "awssubnet_myserverpublicasubnet"
        }
      }
    },
    "aws_security_group": {
      "awssecuritygroup_publicwebtraffic": {
        "name": "public-web-traffic",
        "vpc_id": "${aws_vpc.awsvpc_myservervpc.id}",
        "depends_on": [
          "aws_vpc.awsvpc_myservervpc"
        ],
        "tags": {
          "Name": "public-web-traffic",
          "iac:id": "awssecuritygroup_publicwebtraffic"
        }
      }
    },
    "aws_vpc_security_group_ingress_rule": {
      "awsvpcsecuritygroupingressrule_allowhttptrafficfromtheinternet": {
        "ip_protocol": "tcp",
        "security_group_id": "${aws_security_group.awssecuritygroup_publicwebtraffic.id}",
        "cidr_ipv4": "0.0.0.0/0",
        "description": "Allow HTTP traffic from the internet",
        "from_port": 80,
        "to_port": 80,
        "depends_on": [
          "aws_security_group.awssecuritygroup_publicwebtraffic"
        ],
        "tags": {
          "Name": "Allow HTTP traffic from the internet",
          "iac:id": "awsvpcsecuritygroupingressrule_allowhttptrafficfromtheinternet"
        }
      },
      "awsvpcsecuritygroupingressrule_allowhttpstrafficfromtheinternet": {
        "ip_protocol": "tcp",
        "security_group_id": "${aws_security_group.awssecuritygroup_publicwebtraffic.id}",
        "cidr_ipv4": "0.0.0.0/0",
        "description": "Allow HTTPS traffic from the internet",
        "from_port": 443,
        "to_port": 443,
        "depends_on": [
          "aws_security_group.awssecuritygroup_publicwebtraffic"
        ],
        "tags": {
          "Name": "Allow HTTPS traffic from the internet",
          "iac:id": "awsvpcsecuritygroupingressrule_allowhttpstrafficfromtheinternet"
        }
      }
    },
    "aws_vpc_security_group_egress_rule": {
      "awsvpcsecuritygroupegressrule_allowalltraffictotheinternet": {
        "ip_protocol": "-1",
        "security_group_id": "${aws_security_group.awssecuritygroup_publicwebtraffic.id}",
        "cidr_ipv4": "0.0.0.0/0",
        "description": "Allow All traffic to the internet",
        "from_port": 0,
        "to_port": 0,
        "depends_on": [
          "aws_security_group.awssecuritygroup_publicwebtraffic"
        ],
        "tags": {
          "Name": "Allow All traffic to the internet",
          "iac:id": "awsvpcsecuritygroupegressrule_allowalltraffictotheinternet"
        }
      }
    },
    "aws_internet_gateway": {
      "awsinternetgateway_myserverinternetgateway": {
        "vpc_id": "${aws_vpc.awsvpc_myservervpc.id}",
        "depends_on": [
          "aws_vpc.awsvpc_myservervpc"
        ],
        "tags": {
          "Name": "my-server-internet-gateway",
          "iac:id": "awsinternetgateway_myserverinternetgateway"
        }
      }
    },
    "aws_default_route_table": {
      "awsdefaultroutetable_myserverdefaultroutetable": {
        "default_route_table_id": "${aws_vpc.awsvpc_myservervpc.default_route_table_id}",
        "depends_on": [
          "aws_vpc.awsvpc_myservervpc"
        ],
        "tags": {
          "Name": "my-server-default-route-table",
          "iac:id": "awsdefaultroutetable_myserverdefaultroutetable"
        }
      }
    },
    "aws_route": {
      "awsroute_route": {
        "route_table_id": "${aws_vpc.awsvpc_myservervpc.default_route_table_id}",
        "destination_cidr_block": "0.0.0.0/0",
        "gateway_id": "${aws_internet_gateway.awsinternetgateway_myserverinternetgateway.id}",
        "depends_on": [
          "aws_vpc.awsvpc_myservervpc",
          "aws_internet_gateway.awsinternetgateway_myserverinternetgateway"
        ]
      }
    },
    "aws_iam_role": {
      "awsiamrole_myserverrole": {
        "assume_role_policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"ec2.amazonaws.com\"},\"Action\":\"sts:AssumeRole\"}]}",
        "name": "my-server-role",
        "tags": {
          "Name": "my-server-role",
          "iac:id": "awsiamrole_myserverrole"
        }
      }
    },
    "aws_iam_instance_profile": {
      "awsiaminstanceprofile_myserverinstanceprofile": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myserverrole"
        ],
        "role": "my-server-role",
        "tags": {
          "Name": "my-server-instance-profile",
          "iac:id": "awsiaminstanceprofile_myserverinstanceprofile"
        }
      }
    },
    "aws_iam_role_policy_attachment": {
      "awsiamrolepolicyattachment_myserverroleamazonssmmanagedinstancecore": {
        "depends_on": [
          "aws_iam_role.awsiamrole_myserverrole"
        ],
        "policy_arn": "arn:aws:iam::aws:policy/AmazonSSMManagedInstanceCore",
        "role": "my-server-role"
      }
    },
    "local_file": {
      "localfile_myserverstackjson": {
        "filename": "my-server.stack.json",
        "content": "{\n  \"awsinstance_myserver_output\": {\n    \"Name\": \"my-server\",\n    \"InstanceId\": \"${aws_instance.awsinstance_myserver.id}\",\n    \"PublicIp\": \"${aws_instance.awsinstance_myserver.public_ip}\",\n    \"Region\": \"${aws_instance.awsinstance_myserver.region}\"\n  }\n}",
        "depends_on": [
          "aws_instance.awsinstance_myserver"
        ]
      }
    }
  },
  "output": {
    "awsinstance_myserver_output": {
      "value": "{\"Name\":\"my-server\",\"InstanceId\":\"${aws_instance.awsinstance_myserver.id}\",\"PublicIp\":\"${aws_instance.awsinstance_myserver.public_ip}\",\"Region\":\"${aws_instance.awsinstance_myserver.region}\"}",
      "description": "Output of my-server",
      "depends_on": [
        "aws_instance.awsinstance_myserver"
      ]
    }
  },
  "data": {
    "aws_ami": {
      "awsami_ami": {
        "filter": [
          {
            "name": "architecture",
            "values": [
              "x86_64"
            ]
          }
        ],
        "most_recent": true,
        "name_regex": "^al2023-ami-\\d{4}.*",
        "owners": [
          "amazon"
        ]
      }
    }
  }
}

Resource types

List of resource types used by this stack, in approximate order of creation:

1. aws_vpc
2. aws_default_route_table
3. aws_internet_gateway
4. aws_subnet
5. aws_route
6. aws_security_group
7. aws_vpc_security_group_ingress_rule
8. aws_vpc_security_group_egress_rule
9. aws_iam_role
10. aws_iam_role_policy_attachment
11. aws_iam_instance_profile
12. data.aws_ami
13. aws_instance
14. local_file

Steps to try

Install dinghy-cli

If you haven't already:

curl -fsSL https://get.dinghy.dev/install.sh | sh

Sample Screenshot

Prepare source code

Create my-server.tsx and dinghy.config.yml files with content from above.

curl -fsSL --create-dirs -o ec2-servers/my-server.tsx https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/ec2-servers/my-server.tsx
curl -fsSL --create-dirs -o ec2-servers/dinghy.config.yml https://raw.githubusercontent.com/dinghydev/dinghy/main/sites/www/src/docs/examples/show-cases/ec2-servers/dinghy.config.yml
cd ec2-servers

Preview the actions

Run dinghy tf diff to preview the Terraform actions that will be performed.

info

Make sure your AWS credentials are configured before interacting with AWS services.

dinghy tf diff

Sample Screenshot

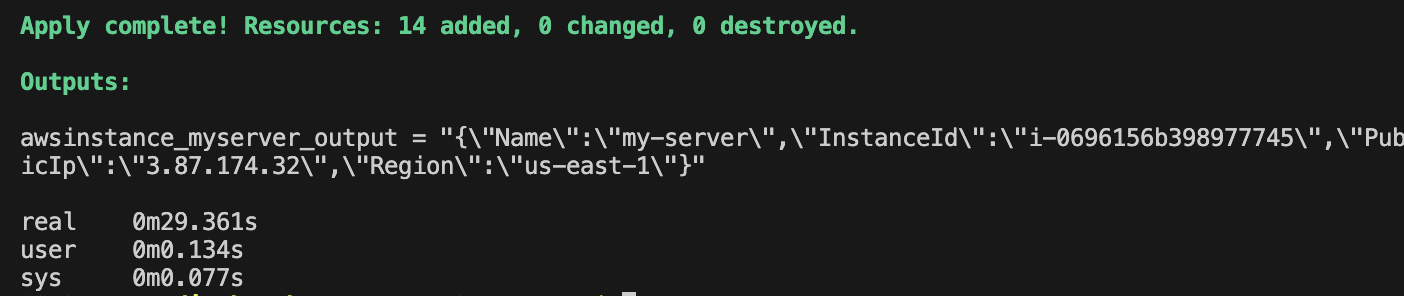

Apply the actions

Run dinghy tf deploy to apply the changes and provision your resources.

dinghy tf deploy

Sample Screenshot

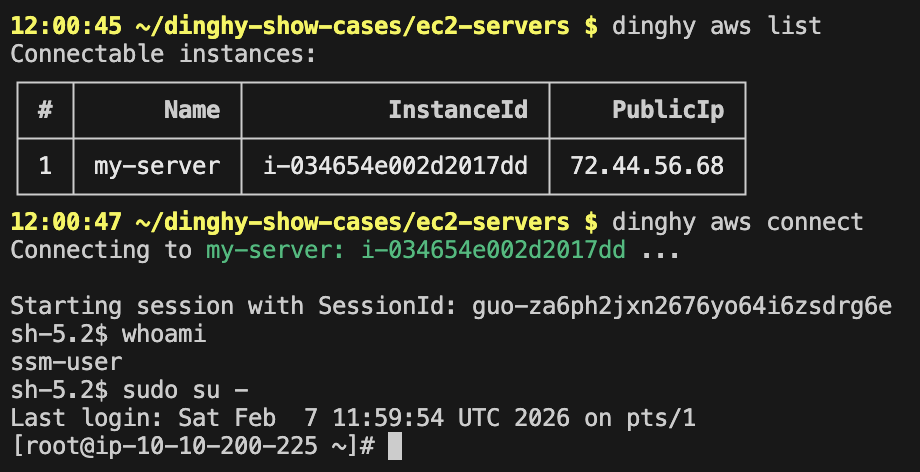

Access the server

Once your EC2 server(s) are ready, you can connect to them easily:

• Run dinghy aws list to see all EC2 instances.
• Run dinghy aws connect to start an interactive connection to any instance, with no additional setup needed 🪄

dinghy aws connect

Sample Screenshot

Destroy resources

After experimenting, run dinghy tf destroy to remove all resources created in the previous steps.
