Arrows Arrows2 Dependencies

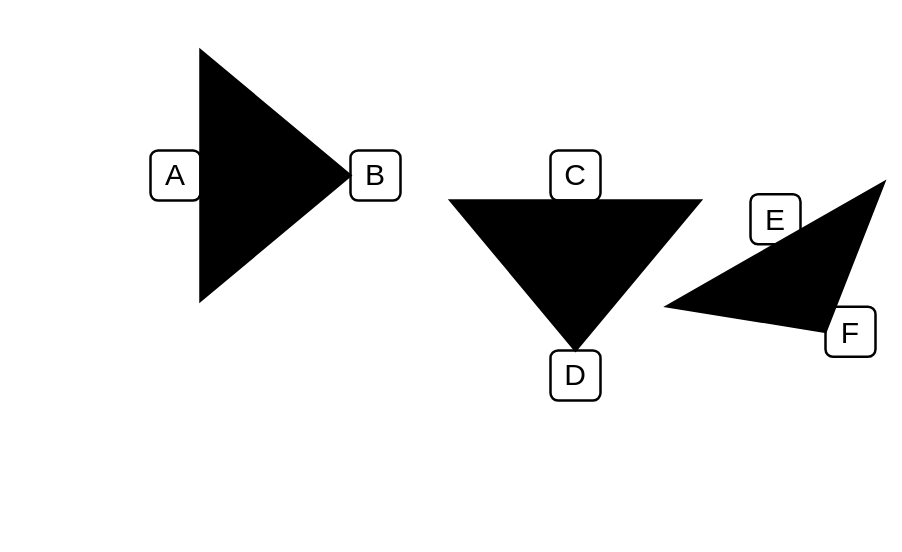

Wedge Arrow

Preview

Usage

import { WedgeArrow } from '@dinghy/diagrams/dependenciesArrows2'

<WedgeArrow/>

Definition

{
  _style: {
    dependency: 'shape=mxgraph.arrows2.wedgeArrow;html=1;bendable=0;startWidth=50;fillColor=strokeColor;defaultFillColor=invert;defaultGradientColor=invert;',
  },
}

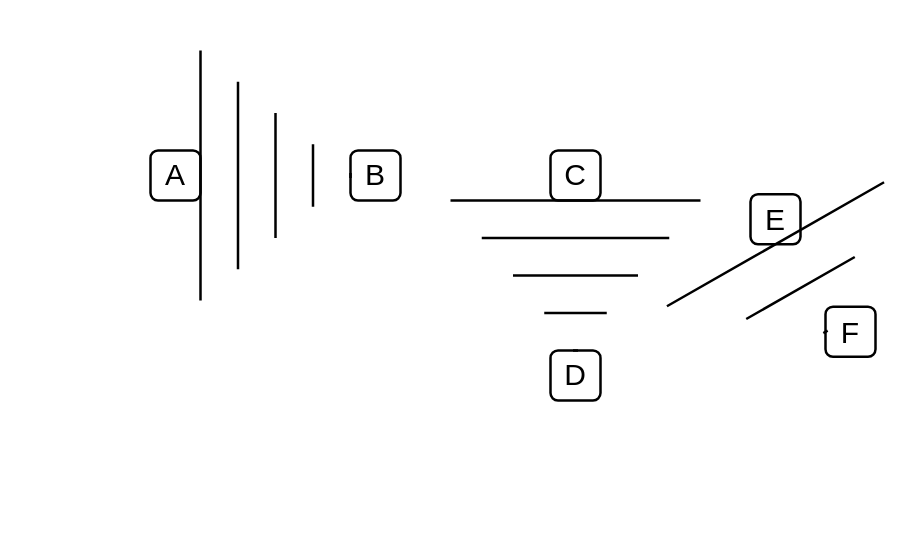

Wedge Arrow Dashed

Preview

Usage

import { WedgeArrowDashed } from '@dinghy/diagrams/dependenciesArrows2'

<WedgeArrowDashed/>

Definition

{
  _style: {
    dependency: 'shape=mxgraph.arrows2.wedgeArrowDashed2;html=1;bendable=0;startWidth=50;stepSize=15;',
  },
}
