Demo Site

A fully functional end-to-end demo site:

Github project: dinghydev/dinghy-example-cloudfront-sites
Github CI/CD workflow:
Github Drift Detection workflow:
deployed as: https://cloudfront-site-demo.dinghy.dev/

app.tsx
dinghy.config.yaml
Overview

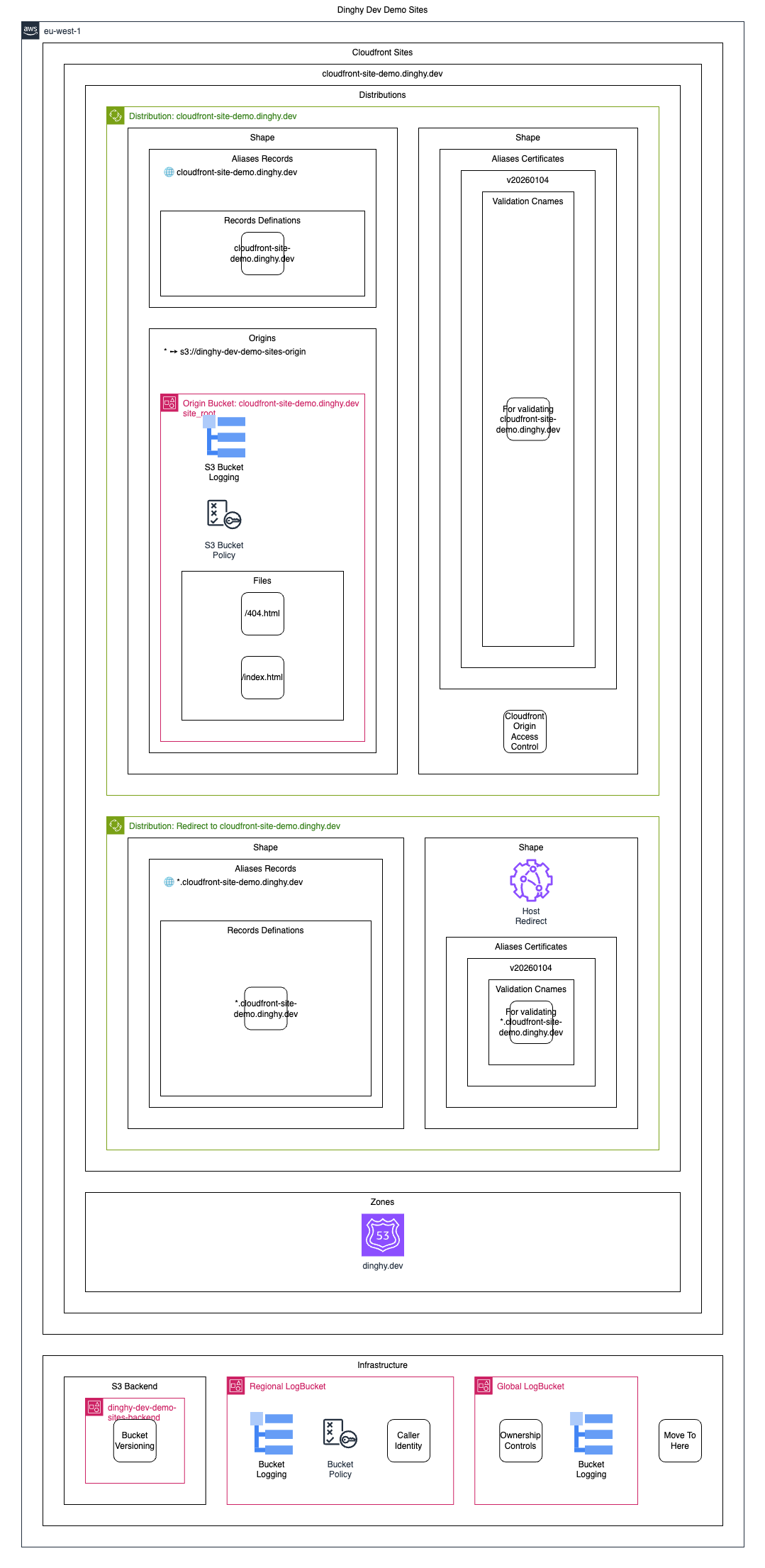

All View
Terraform

import { MoveToHere, Shape } from '@dinghy/base-components'
import {
  AwsProvider,
  GlobalLogBucket,
  RegionalLogBucket,
  S3Backend,
} from '@dinghy/tf-aws'
import { CloudfrontSites } from '@dinghy/tf-aws/cloudfrontSites'

export default function Stack() {
  return (
    <DinghyDevDemoSites>
      <AwsProvider region='eu-west-1'>
        <CloudfrontSites />
        <Infrastructure />
      </AwsProvider>
    </DinghyDevDemoSites>
  )
}

const DinghyDevDemoSites = (props: any) => <Shape {...props} />

const Infrastructure = (props: any) => {
  return (
    <Shape _distributed {...props}>
      <S3Backend logEnabled />
      <RegionalLogBucket />
      <GlobalLogBucket />
      <MoveToHere includes='AwsRoute53Zone' />
    </Shape>
  )
}

cloudfrontSites:
  cloudfront-site-demo.dinghy.dev:
    origins:
      site_root:
        target: 's3://dinghy-dev-demo-sites-origin'
    redirectFromNames:
      - '*.cloudfront-site-demo.dinghy.dev'
    certVersions:
      - '20260104'
    custom_error_response:
      - error_code: 403
        response_code: 404
        error_caching_min_ttl: 3600
        response_page_path: /404.html

tf.json
{
  "provider": {
    "aws": [
      {
        "region": "eu-west-1",
        "default_tags": {
          "tags": {
            "iac:stack-title": "Dinghy Dev Demo Sites",
            "iac:stack-name": "dinghy-dev-demo-sites"
          }
        }
      }
    ]
  },
  "terraform": {
    "required_providers": {
      "aws": {
        "source": "aws",
        "version": "6.22.0"
      }
    },
    "backend": {
      "s3": {
        "bucket": "dinghy-dev-demo-sites-backend",
        "key": "tfstates/app.tfstate",
        "region": "eu-west-1"
      }
    }
  },
  "resource": {
    "aws_cloudfront_distribution": {
      "cloudfrontsitedemodinghydev_site": {
        "default_cache_behavior": {
          "allowed_methods": [
            "GET",
            "HEAD"
          ],
          "cached_methods": [
            "GET",
            "HEAD"
          ],
          "target_origin_id": "site_root",
          "viewer_protocol_policy": "redirect-to-https",
          "cache_policy_id": "658327ea-f89d-4fab-a63d-7e88639e58f6",
          "function_association": []
        },
        "enabled": true,
        "origin": [
          {
            "origin_id": "site_root",
            "domain_name": "${aws_s3_bucket.cloudfrontsitedemodinghydev_site_root_bucket.bucket_regional_domain_name}",
            "origin_path": "",
            "origin_access_control_id": "${aws_cloudfront_origin_access_control.cloudfrontsitedemodinghydev_originaccesscontrol.id}"
          }
        ],
        "restrictions": {
          "geo_restriction": {
            "restriction_type": "none"
          }
        },
        "viewer_certificate": {
          "acm_certificate_arn": "${aws_acm_certificate.cloudfrontsitedemodinghydev_site_20260104_certificate.arn}",
          "minimum_protocol_version": "TLSv1.2_2021",
          "ssl_support_method": "sni-only"
        },
        "aliases": [
          "cloudfront-site-demo.dinghy.dev"
        ],
        "comment": "cloudfront-site-demo.dinghy.dev",
        "custom_error_response": [
          {
            "error_caching_min_ttl": 3600,
            "error_code": 403,
            "response_code": 404,
            "response_page_path": "/404.html"
          }
        ],
        "default_root_object": "index.html",
        "logging_config": {
          "bucket": "${aws_s3_bucket.awss3bucket_globallogbucket.bucket_domain_name}",
          "prefix": "cloudfront-accesslog/cloudfrontsitedemodinghydev_site/"
        },
        "ordered_cache_behavior": [],
        "tags": {
          "Name": "Distribution: cloudfront-site-demo.dinghy.dev",
          "iac:id": "cloudfrontsitedemodinghydev_site"
        }
      },
      "cloudfrontsitedemodinghydev_redirect": {
        "default_cache_behavior": {
          "allowed_methods": [
            "GET",
            "HEAD"
          ],
          "cached_methods": [
            "GET",
            "HEAD"
          ],
          "target_origin_id": "site_root",
          "viewer_protocol_policy": "redirect-to-https",
          "cache_policy_id": "658327ea-f89d-4fab-a63d-7e88639e58f6",
          "function_association": [
            {
              "event_type": "viewer-request",
              "function_arn": "${aws_cloudfront_function.cloudfrontsitedemodinghydev_redirect_function.arn}"
            }
          ]
        },
        "enabled": true,
        "origin": [
          {
            "origin_id": "site_root",
            "domain_name": "${aws_s3_bucket.cloudfrontsitedemodinghydev_site_root_bucket.bucket_regional_domain_name}",
            "origin_path": "",
            "origin_access_control_id": "${aws_cloudfront_origin_access_control.cloudfrontsitedemodinghydev_originaccesscontrol.id}"
          }
        ],
        "restrictions": {
          "geo_restriction": {
            "restriction_type": "none"
          }
        },
        "viewer_certificate": {
          "acm_certificate_arn": "${aws_acm_certificate.cloudfrontsitedemodinghydev_redirect_20260104_certificate.arn}",
          "minimum_protocol_version": "TLSv1.2_2021",
          "ssl_support_method": "sni-only"
        },
        "aliases": [
          "*.cloudfront-site-demo.dinghy.dev"
        ],
        "comment": "Redirect to cloudfront-site-demo.dinghy.dev",
        "custom_error_response": [
          {
            "error_caching_min_ttl": 3600,
            "error_code": 403,
            "response_code": 404,
            "response_page_path": "/404.html"
          }
        ],
        "default_root_object": "index.html",
        "logging_config": {
          "bucket": "${aws_s3_bucket.awss3bucket_globallogbucket.bucket_domain_name}",
          "prefix": "cloudfront-accesslog/cloudfrontsitedemodinghydev_redirect/"
        },
        "tags": {
          "Name": "Distribution: Redirect to cloudfront-site-demo.dinghy.dev",
          "iac:id": "cloudfrontsitedemodinghydev_redirect"
        }
      }
    },
    "aws_route53_record": {
      "cloudfrontsitedemodinghydev_arecord": {
        "name": "cloudfront-site-demo.dinghy.dev",
        "type": "A",
        "zone_id": "${data.aws_route53_zone.dinghydev_zone.id}",
        "alias": {
          "name": "${aws_cloudfront_distribution.cloudfrontsitedemodinghydev_site.domain_name}",
          "zone_id": "${aws_cloudfront_distribution.cloudfrontsitedemodinghydev_site.hosted_zone_id}",
          "evaluate_target_health": false
        }
      },
      "cloudfrontsitedemodinghydev_validation_cname": {
        "name": "${one([\n  for dvo in aws_acm_certificate.cloudfrontsitedemodinghydev_site_20260104_certificate.domain_validation_options :\n  dvo if dvo.domain_name == \"cloudfront-site-demo.dinghy.dev\"\n]).resource_record_name}",
        "type": "CNAME",
        "zone_id": "${data.aws_route53_zone.dinghydev_zone.id}",
        "allow_overwrite": true,
        "records": [
          "${one([\n  for dvo in aws_acm_certificate.cloudfrontsitedemodinghydev_site_20260104_certificate.domain_validation_options :\n  dvo if dvo.domain_name == \"cloudfront-site-demo.dinghy.dev\"\n]).resource_record_value}"
        ],
        "ttl": 60
      },
      "star_cloudfrontsitedemodinghydev_arecord": {
        "name": "*.cloudfront-site-demo.dinghy.dev",
        "type": "A",
        "zone_id": "${data.aws_route53_zone.dinghydev_zone.id}",
        "alias": {
          "name": "${aws_cloudfront_distribution.cloudfrontsitedemodinghydev_redirect.domain_name}",
          "zone_id": "${aws_cloudfront_distribution.cloudfrontsitedemodinghydev_redirect.hosted_zone_id}",
          "evaluate_target_health": false
        }
      },
      "star_cloudfrontsitedemodinghydev_validation_cname": {
        "name": "${one([\n  for dvo in aws_acm_certificate.cloudfrontsitedemodinghydev_redirect_20260104_certificate.domain_validation_options :\n  dvo if dvo.domain_name == \"*.cloudfront-site-demo.dinghy.dev\"\n]).resource_record_name}",
        "type": "CNAME",
        "zone_id": "${data.aws_route53_zone.dinghydev_zone.id}",
        "allow_overwrite": true,
        "records": [
          "${one([\n  for dvo in aws_acm_certificate.cloudfrontsitedemodinghydev_redirect_20260104_certificate.domain_validation_options :\n  dvo if dvo.domain_name == \"*.cloudfront-site-demo.dinghy.dev\"\n]).resource_record_value}"
        ],
        "ttl": 60
      }
    },
    "aws_s3_bucket": {
      "cloudfrontsitedemodinghydev_site_root_bucket": {
        "bucket": "dinghy-dev-demo-sites-origin",
        "tags": {
          "Name": "Origin Bucket: cloudfront-site-demo.dinghy.dev site_root",
          "iac:id": "cloudfrontsitedemodinghydev_site_root_bucket"
        }
      },
      "awss3bucket_backend": {
        "bucket": "dinghy-dev-demo-sites-backend",
        "object_lock_enabled": true,
        "tags": {
          "Name": "dinghy-dev-demo-sites-backend",
          "iac:id": "awss3bucket_backend"
        }
      },
      "awss3bucket_regionallogbucket": {
        "bucket": "dinghy-dev-demo-sites-logs-eu-west-1",
        "tags": {
          "Name": "Regional LogBucket",
          "iac:id": "awss3bucket_regionallogbucket"
        }
      },
      "awss3bucket_globallogbucket": {
        "bucket": "dinghy-dev-demo-sites-logs-global",
        "region": "us-east-1",
        "tags": {
          "Name": "Global LogBucket",
          "iac:id": "awss3bucket_globallogbucket"
        }
      }
    },
    "aws_s3_bucket_logging": {
      "cloudfrontsitedemodinghydev_site_root_bucketlogging": {
        "bucket": "dinghy-dev-demo-sites-origin",
        "target_bucket": "dinghy-dev-demo-sites-logs-eu-west-1",
        "target_prefix": "s3-access-log/dinghy-dev-demo-sites-origin/"
      },
      "awss3bucket_regionallogbucket_logging": {
        "bucket": "dinghy-dev-demo-sites-logs-eu-west-1",
        "target_bucket": "dinghy-dev-demo-sites-logs-eu-west-1",
        "target_prefix": "s3-access-log/dinghy-dev-demo-sites-logs-eu-west-1/",
        "depends_on": [
          "aws_s3_bucket.awss3bucket_regionallogbucket"
        ]
      },
      "awss3bucket_globallogbucket_logging": {
        "bucket": "dinghy-dev-demo-sites-logs-global",
        "target_bucket": "dinghy-dev-demo-sites-logs-global",
        "target_prefix": "s3-access-log/dinghy-dev-demo-sites-logs-global/",
        "region": "us-east-1",
        "depends_on": [
          "aws_s3_bucket.awss3bucket_globallogbucket"
        ]
      }
    },
    "aws_s3_bucket_policy": {
      "cloudfrontsitedemodinghydev_site_root_bucketpolicy": {
        "bucket": "dinghy-dev-demo-sites-origin",
        "policy": "{\"Version\":\"2008-10-17\",\"Id\":\"PolicyForCloudFrontPrivateContent\",\"Statement\":[{\"Sid\":\"AllowCloudFrontServicePrincipal\",\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"cloudfront.amazonaws.com\"},\"Action\":\"s3:GetObject\",\"Resource\":\"arn:aws:s3:::dinghy-dev-demo-sites-origin/*\",\"Condition\":{\"ArnLike\":{\"AWS:SourceArn\":[\"${aws_cloudfront_distribution.cloudfrontsitedemodinghydev_site.arn}\"]}}}]}"
      },
      "awss3bucket_regionallogbucket_policy": {
        "bucket": "dinghy-dev-demo-sites-logs-eu-west-1",
        "policy": "{\"Version\":\"2012-10-17\",\"Statement\":[{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"logging.s3.amazonaws.com\"},\"Action\":\"s3:PutObject\",\"Resource\":\"arn:aws:s3:::dinghy-dev-demo-sites-logs-eu-west-1/*\"},{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"logging.s3.amazonaws.com\"},\"Action\":\"s3:GetBucketAcl\",\"Resource\":\"arn:aws:s3:::dinghy-dev-demo-sites-logs-eu-west-1\"},{\"Effect\":\"Allow\",\"Principal\":{\"Service\":\"delivery.logs.amazonaws.com\"},\"Action\":\"s3:PutObject\",\"Resource\":\"arn:aws:s3:::dinghy-dev-demo-sites-logs-eu-west-1/*\",\"Condition\":{\"StringEquals\":{\"aws:SourceAccount\":\"${data.aws_caller_identity.caller_identity.account_id}\"}}}]}"
      }
    },
    "aws_s3_object": {
      "cloudfrontsitedemodinghydev_site_root_404html": {
        "bucket": "dinghy-dev-demo-sites-origin",
        "cache_control": "max-age=3600, public, must-revalidate",
        "content_type": "text/html; charset=UTF-8",
        "source": "/dinghy/engine/workspace/demo/s3-files/dinghy-dev-demo-sites-origin/404.html",
        "depends_on": [
          "aws_s3_bucket.cloudfrontsitedemodinghydev_site_root_bucket"
        ],
        "key": "/404.html",
        "tags": {
          "Name": "/404.html",
          "iac:id": "cloudfrontsitedemodinghydev_site_root_404html"
        }
      },
      "cloudfrontsitedemodinghydev_site_root_indexhtml": {
        "bucket": "dinghy-dev-demo-sites-origin",
        "cache_control": "max-age=3600, public, must-revalidate",
        "content_type": "text/html; charset=UTF-8",
        "source": "/dinghy/engine/workspace/demo/s3-files/dinghy-dev-demo-sites-origin/index.html",
        "depends_on": [
          "aws_s3_bucket.cloudfrontsitedemodinghydev_site_root_bucket"
        ],
        "key": "/index.html",
        "tags": {
          "Name": "/index.html",
          "iac:id": "cloudfrontsitedemodinghydev_site_root_indexhtml"
        }
      }
    },
    "aws_acm_certificate": {
      "cloudfrontsitedemodinghydev_site_20260104_certificate": {
        "domain_name": "cloudfront-site-demo.dinghy.dev",
        "region": "us-east-1",
        "subject_alternative_names": [],
        "tags": {
          "iac:id": "cloudfrontsitedemodinghydev_site_20260104_certificate",
          "Name": "v20260104"
        },
        "validation_method": "DNS",
        "lifecycle": {
          "ignore_changes": [
            "subject_alternative_names",
            "domain_name"
          ]
        }
      },
      "cloudfrontsitedemodinghydev_redirect_20260104_certificate": {
        "domain_name": "*.cloudfront-site-demo.dinghy.dev",
        "region": "us-east-1",
        "subject_alternative_names": [],
        "tags": {
          "iac:id": "cloudfrontsitedemodinghydev_redirect_20260104_certificate",
          "Name": "v20260104"
        },
        "validation_method": "DNS",
        "lifecycle": {
          "ignore_changes": [
            "subject_alternative_names",
            "domain_name"
          ]
        }
      }
    },
    "aws_cloudfront_origin_access_control": {
      "cloudfrontsitedemodinghydev_originaccesscontrol": {
        "name": "oac-cloudfrontsitedemodinghydev",
        "origin_access_control_origin_type": "s3",
        "signing_behavior": "always",
        "signing_protocol": "sigv4"
      }
    },
    "aws_cloudfront_function": {
      "cloudfrontsitedemodinghydev_redirect_function": {
        "code": "\n              function handler(event) {\n                var request = event.request;\n                \n                var newUrl = 'https://cloudfront-site-demo.dinghy.dev';\n                var response = {\n                  statusCode: 301,\n                  statusDescription: 'Moved Permanently',\n                  headers: {\n                    'location': { value: newUrl }\n                  }\n                };\n                return response;\n              }",
        "name": "cloudfrontsitedemodinghydev_redirect_function",
        "runtime": "cloudfront-js-2.0",
        "publish": true,
        "lifecycle": {
          "ignore_changes": [
            "name"
          ]
        }
      }
    },
    "aws_s3_bucket_versioning": {
      "awss3bucket_backend_versioning": {
        "bucket": "dinghy-dev-demo-sites-backend",
        "versioning_configuration": {
          "status": "Enabled"
        },
        "depends_on": [
          "aws_s3_bucket.awss3bucket_backend"
        ]
      }
    },
    "aws_s3_bucket_ownership_controls": {
      "awss3bucket_globallogbucket_ownership_controls": {
        "bucket": "dinghy-dev-demo-sites-logs-global",
        "rule": {
          "object_ownership": "BucketOwnerPreferred"
        },
        "region": "us-east-1",
        "depends_on": [
          "aws_s3_bucket.awss3bucket_globallogbucket"
        ]
      }
    }
  },
  "data": {
    "aws_route53_zone": {
      "dinghydev_zone": {
        "name": "dinghy.dev"
      }
    },
    "aws_caller_identity": {
      "caller_identity": {}
    }
  }
}
