S3 Bucket

This example demonstrates how to create an S3 bucket using the composite S3Bucket component. It builds upon the basic bucket example, integrating functionality into a higher-level abstraction.

app.tsx

import { Shape } from '@dinghy/base-components'
import { AwsProvider, S3Backend } from '@dinghy/tf-aws'
import { S3Bucket } from '@dinghy/tf-aws/s3Bucket'

export default function Stack() {
  return (
    <Shape _title='S3 Bucket Composite Component Example'>
      <AwsProvider region='eu-west-1'>
        <S3Backend />
        <S3Bucket
          bucket='my-demo-bucket-with-versioning'
          versioningEnabled
        />
      </AwsProvider>
    </Shape>
  )
}

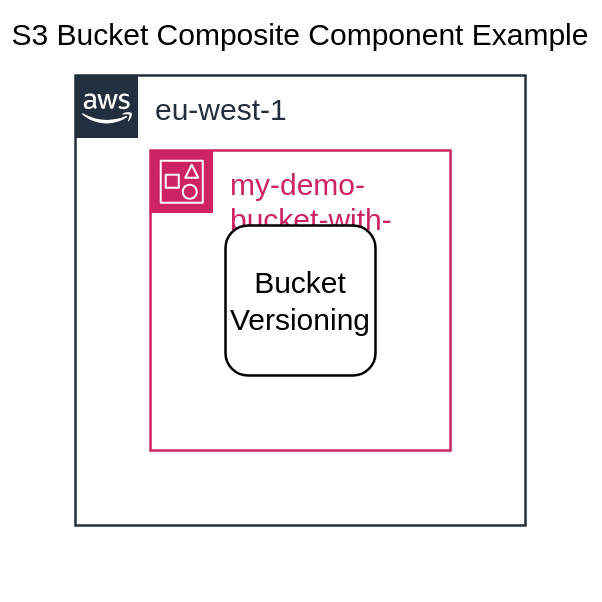

Overview

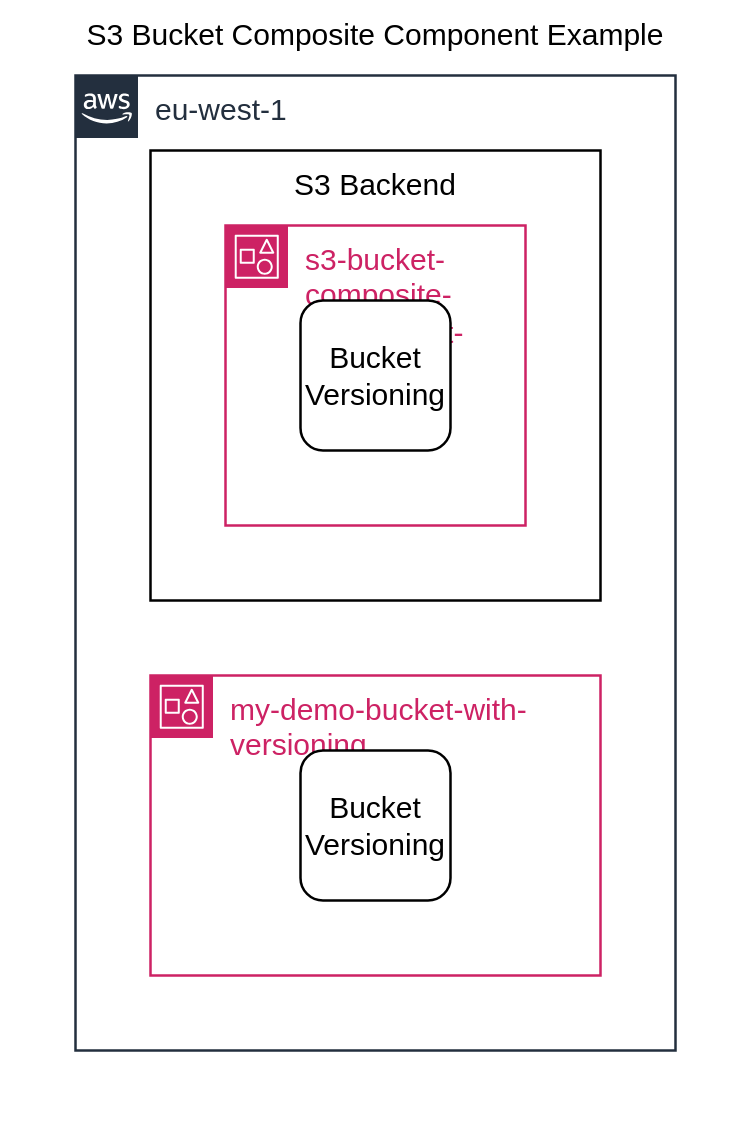

All View

Terraform

tf.json

{
  "provider": {
    "aws": [
      {
        "region": "eu-west-1",
        "default_tags": {
          "tags": {
            "iac:stack-title": "S3 Bucket Composite Component Example",
            "iac:stack-name": "s3-bucket-composite-component-example"
          }
        }
      }
    ]
  },
  "terraform": {
    "required_providers": {
      "aws": {
        "source": "aws",
        "version": "6.22.0"
      }
    },
    "backend": {
      "s3": {
        "bucket": "s3-bucket-composite-component-example-backend",
        "key": "tfstates/app.tfstate",
        "region": "eu-west-1"
      }
    }
  },
  "resource": {
    "aws_s3_bucket": {
      "awss3bucket_backend": {
        "bucket": "s3-bucket-composite-component-example-backend",
        "object_lock_enabled": true,
        "tags": {
          "Name": "s3-bucket-composite-component-example-backend",
          "iac:id": "awss3bucket_backend"
        }
      },
      "awss3bucket_mydemobucketwithversioning": {
        "bucket": "my-demo-bucket-with-versioning",
        "tags": {
          "Name": "my-demo-bucket-with-versioning",
          "iac:id": "awss3bucket_mydemobucketwithversioning"
        }
      }
    },
    "aws_s3_bucket_versioning": {
      "awss3bucket_backend_versioning": {
        "bucket": "s3-bucket-composite-component-example-backend",
        "versioning_configuration": {
          "status": "Enabled"
        },
        "depends_on": [
          "aws_s3_bucket.awss3bucket_backend"
        ]
      },
      "awss3bucket_mydemobucketwithversioning_versioning": {
        "bucket": "my-demo-bucket-with-versioning",
        "versioning_configuration": {
          "status": "Enabled"
        },
        "depends_on": [
          "aws_s3_bucket.awss3bucket_mydemobucketwithversioning"
        ]
      }
    }
  }
}
