Bucket With Basic Service Components

This example shows how to create an S3 bucket using the foundational service components as building blocks.

For a simpler approach, consider using the S3Bucket composite component.

app.tsx

import { deepResolve, Shape } from '@dinghy/base-components'
import { AwsProvider, S3Backend } from '@dinghy/tf-aws'
import {
  AwsS3Bucket,
  AwsS3BucketVersioning,
  useAwsS3Bucket,
} from '@dinghy/tf-aws/serviceS3'

export default function Stack() {
  return (
    <Shape _title='S3 Bucket Service Components Example'>
      <AwsProvider region='eu-west-1'>
        <S3Backend />
        <VersionedBucket
          bucket='my-demo-bucket-with-versioning'
          versioningEnabled
        />
      </AwsProvider>
    </Shape>
  )
}

const VersionedBucket = (
  { bucket, versioningEnabled, children, ...props }: any,
) => {
  return (
    <AwsS3Bucket
      bucket={bucket}
      _title={bucket}
      {...props}
    >
      {versioningEnabled && <BucketVersioning />}
      {children}
    </AwsS3Bucket>
  )
}

const BucketVersioning = (props: any) => {
  const { s3Bucket } = useAwsS3Bucket()
  return (
    <AwsS3BucketVersioning
      bucket={s3Bucket.bucket}
      _id={() => `${deepResolve(s3Bucket._id)}_versioning`}
      versioning_configuration={{ status: 'Enabled' }}
      depends_on={() => [s3Bucket._terraformId]}
      {...props}
    />
  )
}

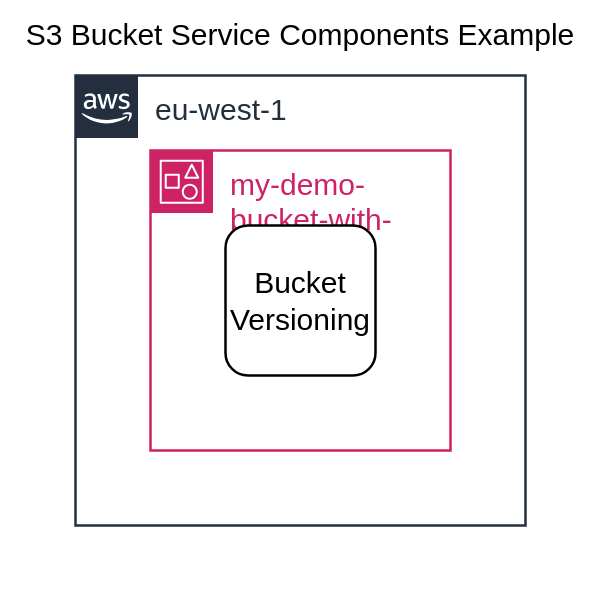

Overview

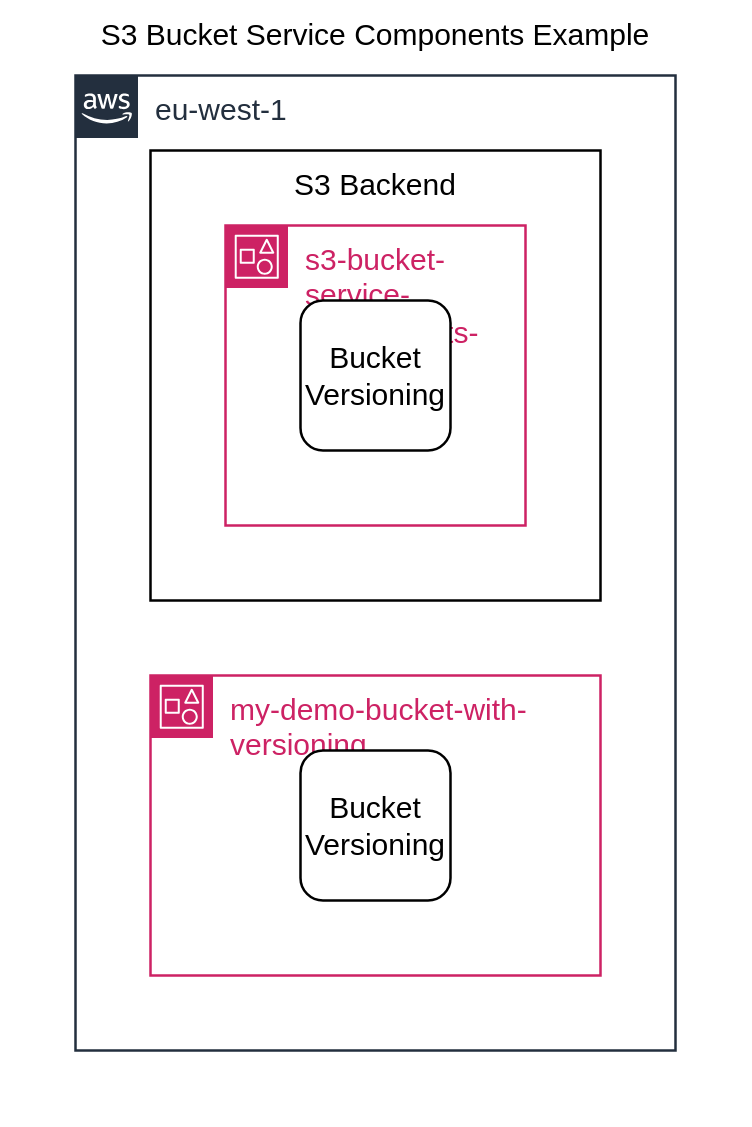

All View

Terraform

tf.json

{
  "provider": {
    "aws": [
      {
        "region": "eu-west-1",
        "default_tags": {
          "tags": {
            "iac:stack-title": "S3 Bucket Service Components Example",
            "iac:stack-name": "s3-bucket-service-components-example"
          }
        }
      }
    ]
  },
  "terraform": {
    "required_providers": {
      "aws": {
        "source": "aws",
        "version": "6.22.0"
      }
    },
    "backend": {
      "s3": {
        "bucket": "s3-bucket-service-components-example-backend",
        "key": "tfstates/app.tfstate",
        "region": "eu-west-1"
      }
    }
  },
  "resource": {
    "aws_s3_bucket": {
      "awss3bucket_backend": {
        "bucket": "s3-bucket-service-components-example-backend",
        "object_lock_enabled": true,
        "tags": {
          "Name": "s3-bucket-service-components-example-backend",
          "iac:id": "awss3bucket_backend"
        }
      },
      "awss3bucket_mydemobucketwithversioning": {
        "bucket": "my-demo-bucket-with-versioning",
        "tags": {
          "Name": "my-demo-bucket-with-versioning",
          "iac:id": "awss3bucket_mydemobucketwithversioning"
        }
      }
    },
    "aws_s3_bucket_versioning": {
      "awss3bucket_backend_versioning": {
        "bucket": "s3-bucket-service-components-example-backend",
        "versioning_configuration": {
          "status": "Enabled"
        },
        "depends_on": [
          "aws_s3_bucket.awss3bucket_backend"
        ]
      },
      "awss3bucket_mydemobucketwithversioning_versioning": {
        "bucket": "my-demo-bucket-with-versioning",
        "versioning_configuration": {
          "status": "Enabled"
        },
        "depends_on": [
          "aws_s3_bucket.awss3bucket_mydemobucketwithversioning"
        ]
      }
    }
  }
}
