Get Started

Dinghy is an open source toolchain designed for your Diagram as Code and Infrastructure as Code workflows.

At it's core, it use React as a templating engine to render your data model into target: draw.io based diagram or Terraform (OpenToufu/CloudFormation in the future) based infrastruture.

All those powerful technologies are delivered via a simple Cli through Docker. Under the hood, the stable Cli drive the versioned Engine to perform critical operations in a fast, reliable and predicatable way, all based on Deno runtime with zero language configuration.

tip

The project embraces the spirit of a dinghy - simple, reliable and fun to sail with.

Quick install

Install the latest Dinghy Cli on your system using the terminal command:

curl -fsSL https://get.dinghy.dev/install.sh | sh

If you have trouble install, please refering Installation > Prerequisites section for resolution.

Basic example

Source

Create one of simplest dinghy application as single file:

app.tsx

import { Shape } from "@dinghy/base-components";

export default function App() {
    return (
        <Shape _title="Simple diagram as code">
            <Shape _dependsOn="B">A</Shape>
            <Shape>B</Shape>
        </Shape>
    );
}

Don't be put off by all those Shape components, it's just a simple example for demo purpose. Most time you will write more expressive code. The Step by Step guide shows how the code could progress from a simple Shape component.

Run

Then from same directory, run:

dinghy render

Diagram

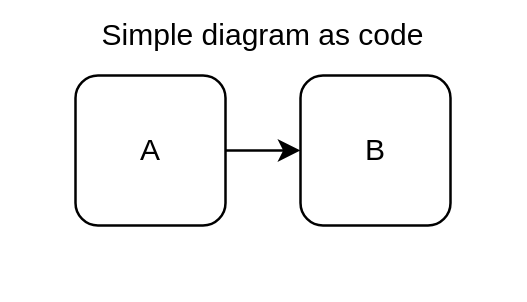

It will generate a few files in output folder include the image app.png:

What's next

You may follow this guide by keep navigate throught the Next link down bellow to know more about the dinghy concepts before actual get hands dirty.
