Sample ECS application

Source

app.tsx

import {
  AwsCloud,
  Ec2InstanceContents,
  Region,
  Vpc,
} from "@dinghy/diagrams/containersAwsGroups";
import { type NodeProps, Shape } from "@dinghy/base-components";
import { ApplicationLoadBalancer } from "@dinghy/diagrams/entitiesAwsNetworkContentDelivery";
import { Client } from "@dinghy/diagrams/entitiesAwsGeneralResources";
import { Android } from "@dinghy/diagrams/entitiesAws17Sdk";
import {
  ElasticacheForRedis,
  PostgreSqlInstance,
} from "@dinghy/diagrams/entitiesAwsDatabase";
import { Waf } from "@dinghy/diagrams/entitiesAwsSecurityIdentityCompliance";

export default function App() {
  return (

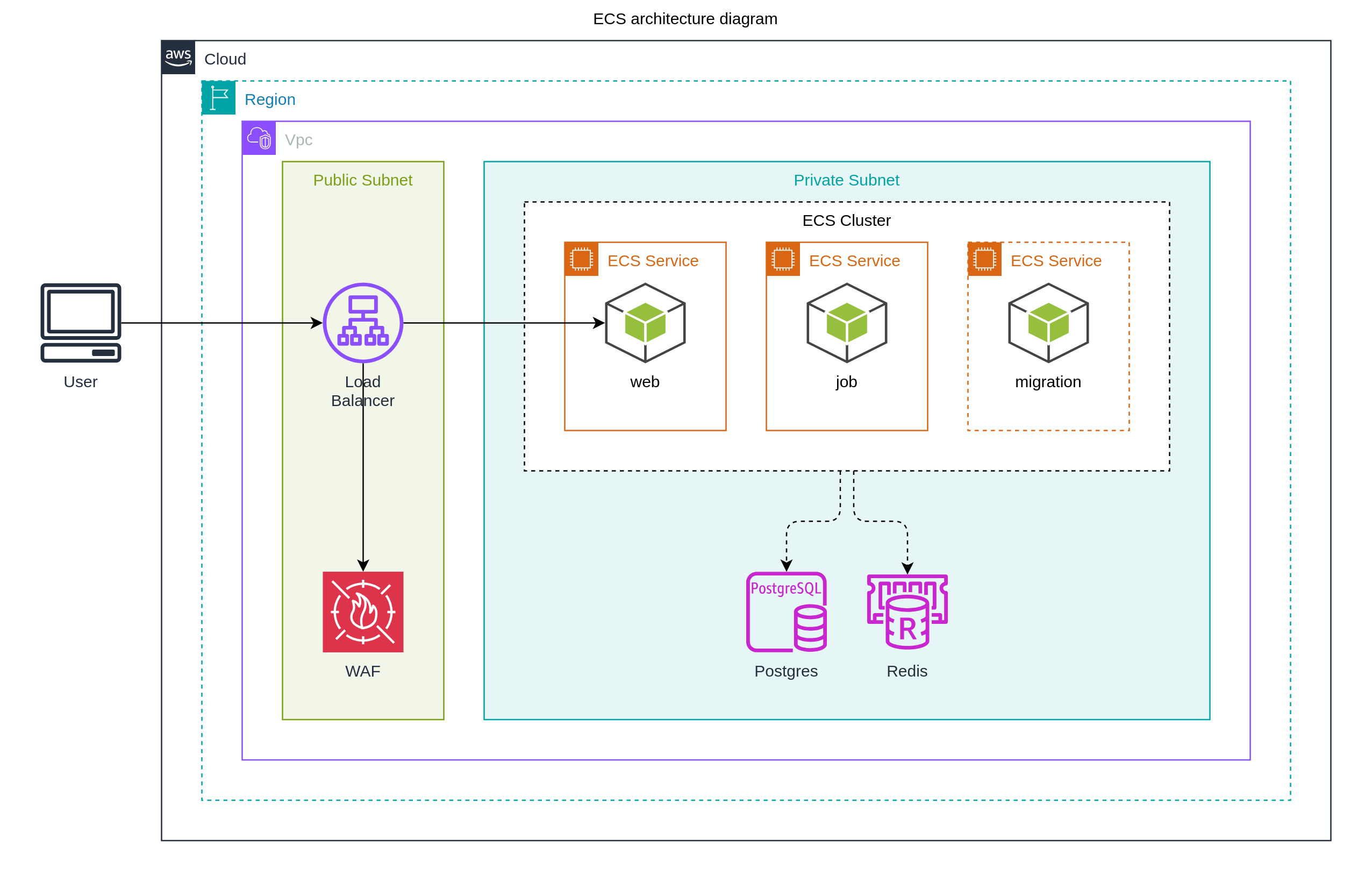

    <Stack title="ECS architecture diagram">
      <User _dependsOn={"LoadBalancer"} />
      <Cloud>
        <Region>
          <Vpc>
            <PublicSubnet>
              <LoadBalancer _dependsOn={["web", "WAF"]} />
              <WAF />
            </PublicSubnet>
            <PrivateSubnet>
              <ECSCluster _dependsOn={["Postgres", "Redis"]}>
                <ECSService>web</ECSService>
                <ECSService>job</ECSService>
                <ECSService _display="inactive">migration</ECSService>
              </ECSCluster>
              <StorageLayer>
                <Postgres />
                <Redis />
              </StorageLayer>
            </PrivateSubnet>
          </Vpc>
        </Region>
      </Cloud>
    </Stack>
  );
}

function Stack(props: NodeProps) {
  return <Shape {...props} />;
}

function Cloud(props: NodeProps) {
  return <AwsCloud {...props} />;
}

function PublicSubnet(props: NodeProps) {
  return (
    <Shape
      _direction="vertical"
      _color="#7AA116"
      _background="#F2F6E8"
      {...props}
    />
  );
}

function PrivateSubnet(props: NodeProps) {
  return (
    <Shape
      _direction="vertical"
      _color="#00A4A6"
      _background="#E6F6F7"
      {...props}
    />
  );
}

function LoadBalancer(props: NodeProps) {
  return (
    <ApplicationLoadBalancer
      _margin={{
        bottom: 120,
      }}
      {...props}
    />
  );
}

function ECSCluster(props: NodeProps) {
  return (
    <Shape
      _display="inactive"
      {...props}
      _margin={{
        bottom: 60,
      }}
    />
  );
}

function ECSService(props: NodeProps) {
  return (
    <Ec2InstanceContents {...props}>
      <ECSContainer>{props.children}</ECSContainer>
    </Ec2InstanceContents>
  );
}

function ECSContainer(props: NodeProps) {
  return <Android _width={60} _height={60} {...props} />;
}

function Postgres(props: NodeProps) {
  return <PostgreSqlInstance _width={60} _height={60} {...props} />;
}

function Redis(props: NodeProps) {
  return <ElasticacheForRedis _width={60} _height={60} {...props} />;
}

function User(props: NodeProps) {
  return <Client _width={60} _height={60} {...props} />;
}

function WAF(props: NodeProps) {
  return <Waf _width={60} _height={60} {...props} />;
}

function StorageLayer(props: NodeProps) {
  return <Shape _display={"invisible"} {...props} />;
}

Diagram
